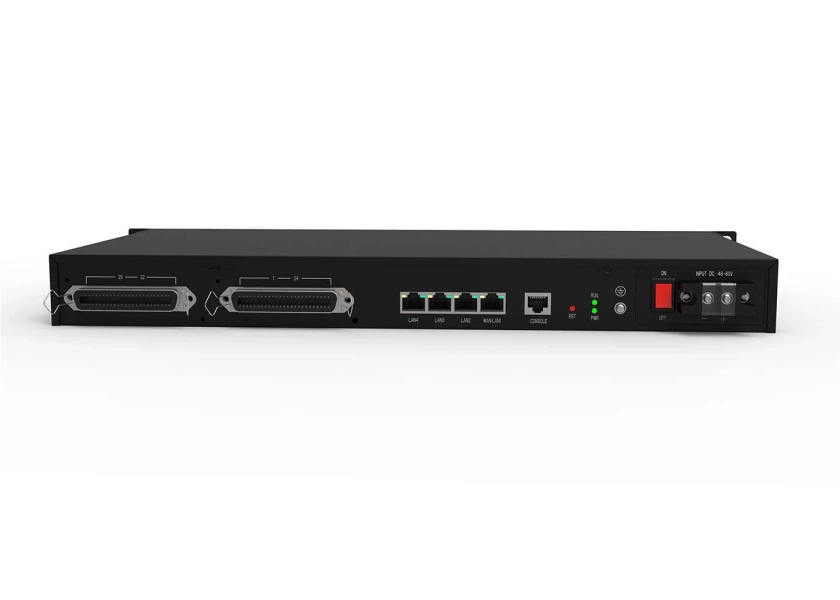

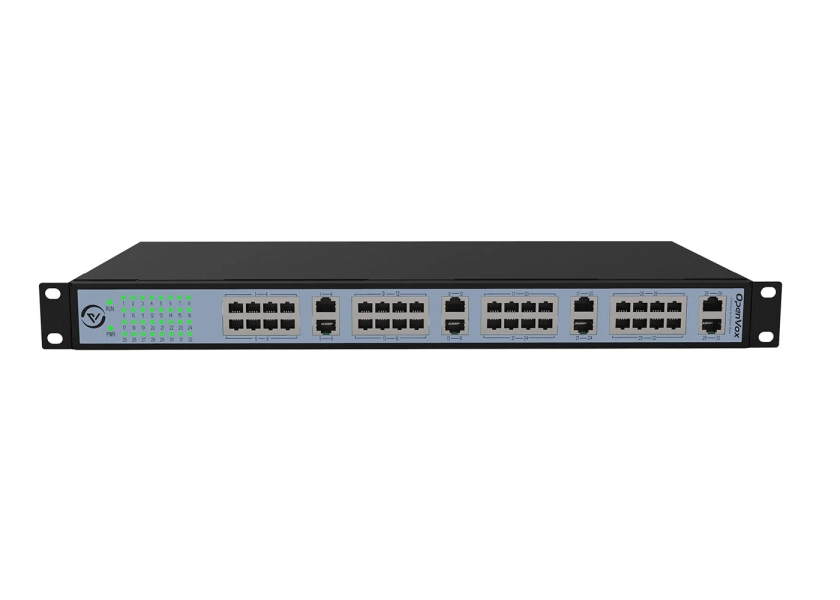

OpenVox MAG2000/32

Physical Interfaces (Capacity & Ethernet Interfaces)

• 32 FXS with RJ11 & RJ21 & RJ45
• 32 FXO with RJ11 & RJ21 & RJ45
• 1*WAN, 10/100/1000Mbps, RJ-45
• 3*LAN, 10/100/1000Mbps, RJ-45

Voice & FAX

• G.711A/U, G.723.1, G.729A, G.722, iLBC, OPUS, AMR and AMR-WB
• Comfort Noise Generation (CNG)
• Modem/POS
• Adaptive (Dynamic) Jitter Buffer
• Programmable Gain Control
• DTMF mode: Signal/RFC2833/INBAND
• T.38/Pass-through
• Echo Cancellation (G.168), with up to 128ms

Call Features

• Call Waiting
• Blind Transfer
• Attend Transfer
• Call Forward on Busy
• Call Forward on No Reply
• Unconditional Call Forward
• Warm/lmmediately Hotline
• Message Waiting Indicator
• SlP registration to different servers
• Call Hold
• Do-not-disturb
• 3-Way Conference
• Speed Dial

FXS

• Connector: RJ11 & RJ21 & RJ45
• Dial Mode: DTMF and Pulse
• Pulse: 10 and 20 PPS
• Caller ID: DTMF/FSK CLI Presentation
• Max Cable Length:3 km
• Reversed Polarity
• Programmable Call Progress Tone

FXO

• Connector: RJ11 & RJ21 & RJ45
• Dial Mode: DTMF/Pulse Dialing
• Caller ID: FSK, DTMF
• Polarity Reversal
• Answer Delay
• Busy Tone Detection
• No Current Detection

Software Features

• Hunting Group
• Web ACL
• Telnet ACL
• Action URL
• PPPoE
• OpenVPN
• Digitmap
• Routing Rules based Prefixes
• Caller/Called Number Manipulation
• VEX (Advanced Peer To Peer Call)

VOIP (Protocol)

• SIP v2.0 (UDP/TCP), RFC3261
• SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311
• RTP/RTCP, RFC2198, RFC1889
• IPv4 and lPv6
• Outbound Proxy
• RFC2806 TEL URI
• RFC3581 NAT, rport
• VLAN 802.1P/802.1Q
• RFC4028 Session Timer
• DNS SRV/A Query/NATPR Query
• NAT: STUN, Static/Dynamic NAT

Maintance

• SNMP v1/v2/v3
• Auto Provisioning
• Web Configuration
• Backup/Restore
• Firmware Upgrade via Web
• CDR
• TR069
• IPoE
• Syslog(Emerg, alert, critical, error, warning, notice, info, debug)
• Ping/Tracert Test
• Network Capture
• NTP/Daylight Saving Time
• lVR local Maintenance
• Cloud-based Management
